Description

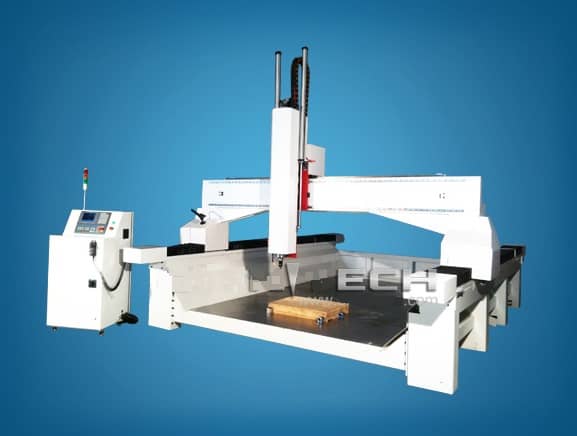

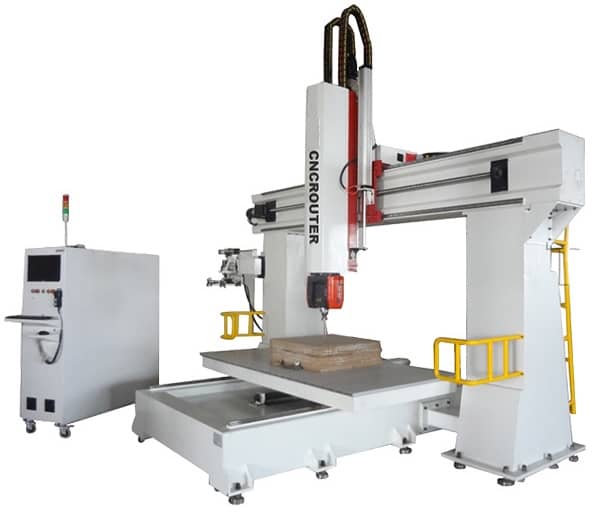

5 Axis CNC Router Machine
Technical parameters
| Item | Parameter |
| Maximum working size | X Axis:1800mm |
| Maximum working size | Y Axis : 3100mm |
| Maximum working size | Z Axis: 1000mm |
| Maximum working size | A Axis: ±120° |
| Maximum working size | C Axis: ±245° |
| Maximum work-piece size | X Axis: 1300mm |
| Maximum work-piece size | Y Axis: 2500mm |
| Maximum work-piece size | Z Axis: 550-600mm (depending on tool length) |
| Maximum work-piece size | A Axis: ±120° |
| Maximum work-piece size | C Axis: ±245° |
| Table Size | 1300x2500mm |
| Table structure | Weld Steel Movable Table |
| Z Structure | Taiwan Guide rail: Z #30 Ball screw (3210) |
| X,Y Structure | Taiwan Guide rail:#40 Ball screw (4040) |
| Spindle | 10kw, Italy spindle, water-cooled |
| Magazine | Disc-type ATC (with 16 tool change magazines) HSK F63 |
| Taper hole in the spindle | HSK F63 |
| Spindle Speed | 22000r/min, variable speed |
| Working Voltage | AC220V/60Hz 3-phase or AC380V 60HZ 3-phase |
| Motor and driver | Japan-made YASKAWA |
| Inverter | Delta inverter |
| Command | G code |
| Controller | Taiwan Syntec 5 axis control system |
| Software | Alpha UG |
| Dust-collect function | No |
| Working table | T-slot table and aluminum table coated with PVC |
| Net weight | 3500kg |
| Gross weight | 3600kg |
| Machine size | 3600*4000*3500mm |
PS: All the working area and specifications can be customized according to your requests.

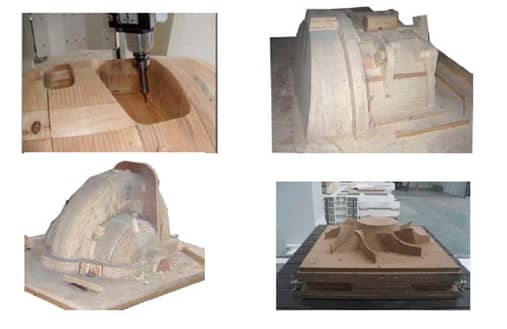

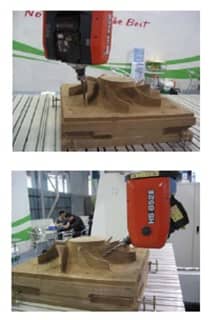

Sample & Application
1.Mold industry
Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, and wooden mold train.
2.Instrument industry
3-d surface engraving and shape cutting of large-scale instruments.
Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, and wooden mold train.
2.Instrument industry
3-d surface engraving and shape cutting of large-scale instruments.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Furniture
Woodworking manufacturing sign, plastics, wood, molds, etc.
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Furniture
Woodworking manufacturing sign, plastics, wood, molds, etc.
