Description

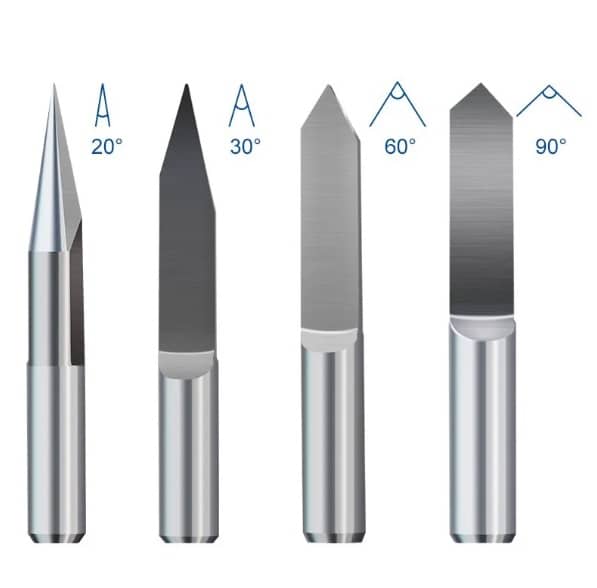

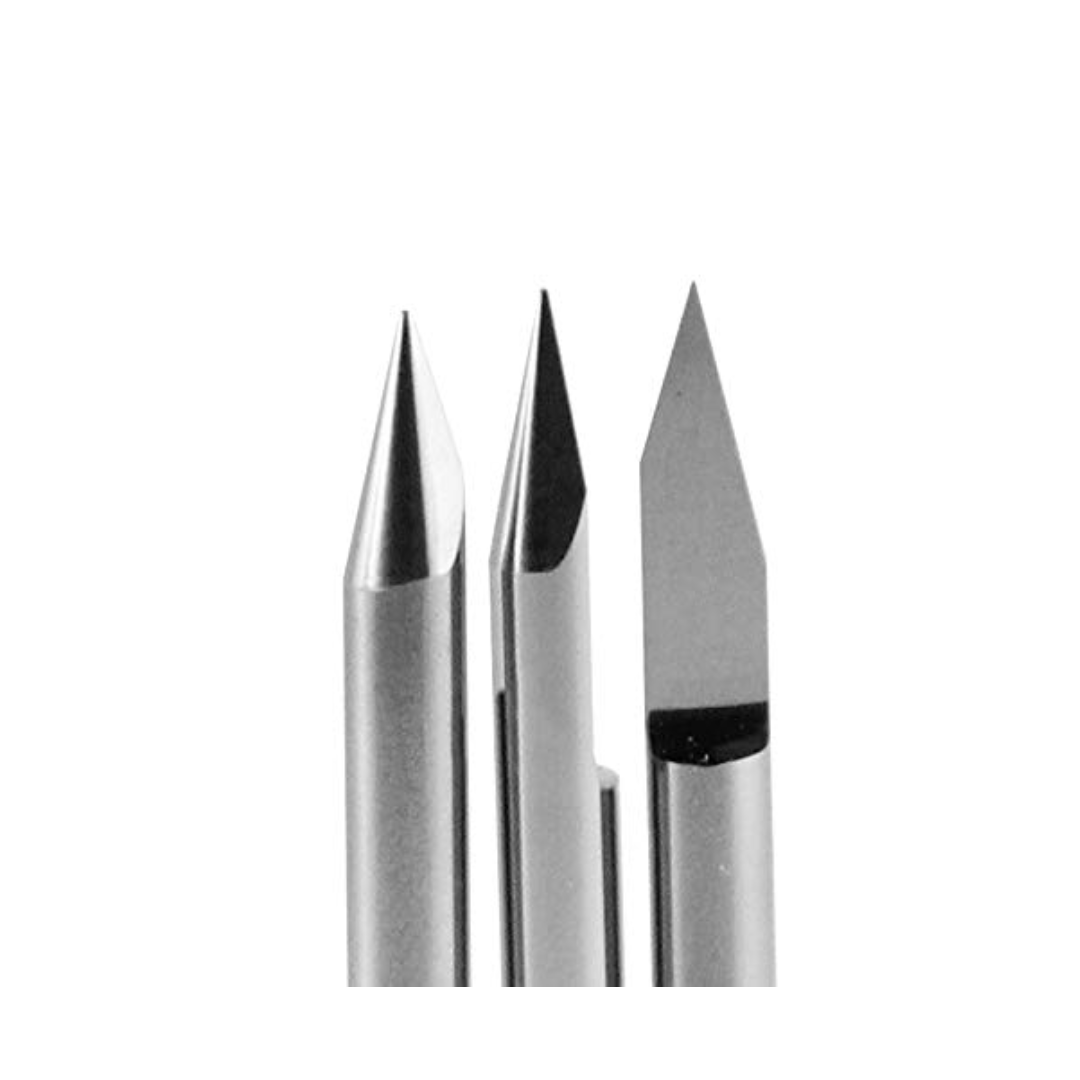

Flat Bottom Engraving Bits
ดอก ENGRAVING สำหรับงานแกะสลัก สามารถสั่งลับองศาและขนาดคมตัดได้ตามความต้องการ มีให้เลือกทั้งขนาดเส้นผ่านศูนย์กลาง 3, 4, 6mm
1. ดอกขนาด DIA. 3mm ราคา 300บาท
2. ดอกขนาด DIA. 4mm ราคา 350บาท
3. ดอกขนาด DIA. 6mm ราคา 480บาท
4. ดอกขนาด DIA. 8mm ราคา 700บาท
5. ดอกขนาด DIA. 10mm ราคา 900บาท
6. ดอกขนาด DIA. 12mm ราคา 1200บาท
| FLAT BOTTOM ENGRAVING BITS | UNIT: mm | ||||
| K10 solid carbide for：ABS，PVC，ACRYLIC，PLASTIC
“JS “ TYPE GOOD FOR ALUMINUM BRASS,STEEL |
|||||
|
MODE |
2T | 2A | SHK | OVL | OVL |
| J3.0502 | 0.2 | 5 | 3 | 33 | 33 |
| J3.0802 | 0.2 | 8 | 3 | 33 | 33 |
| J3.1001 | 0.1 | 10 | 3 | 33 | 33 |
| J3.1002 | 0.2 | 10 | 3 | 33 | 33 |
| J3.1003 | 0.3 | 10 | 3 | 33 | 33 |
| J3.1501 | 0.1 | 15 | 3 | 33 | 33 |
| J3.1502 | 0.2 | 15 | 3 | 33 | 33 |
| J3.2001 | 0.2 | 20 | 3 | 33 | 33 |
| J3.2002 | 0.2 | 20 | 3 | 33 | 33 |
| J3.2003 | 0.3 | 20 | 3 | 33 | 33 |
| J3.2004 | 0.4 | 20 | 3 | 33 | 33 |
| J3.2005 | 0.5 | 20 | 3 | 33 | 33 |
| J3.2501 | 0.1 | 25 | 3 | 33 | 33 |
| J3.2502 | 0.2 | 25 | 3 | 33 | 33 |
| J3.2503 | 0.3 | 25 | 3 | 33 | 33 |
| J3.3001 | 0.1 | 30 | 3 | 33 | 33 |
| J3.3002 | 0.2 | 30 | 3 | 33 | 33 |
| J3.3003 | 0.3 | 30 | 3 | 33 | 33 |
| J3.3004 | 0.4 | 30 | 3 | 33 | 33 |
| J3.3005 | 0.5 | 30 | 3 | 33 | 33 |
| J3.3006 | 0.6 | 30 | 3 | 33 | 33 |
| J3.3008 | 0.8 | 30 | 3 | 33 | 33 |
| J3.3010 | 1 | 30 | 3 | 33 | 33 |
| J3.3012 | 1.2 | 30 | 3 | 33 | 33 |
| J3.3015 | 1.5 | 30 | 3 | 33 | 33 |
| J3.3020 | 2 | 30 | 3 | 33 | 33 |
| J3.4001 | 0.1 | 40 | 3 | 33 | 33 |
| J3.4002 | 0.2 | 40 | 3 | 33 | 33 |
| J3.4003 | 0.3 | 40 | 3 | 33 | 33 |
| J3.4501 | 0.1 | 45 | 3 | 33 | 33 |
| J3.4502 | 0.2 | 45 | 3 | 33 | 33 |
| J3.4503 | 0.3 | 45 | 3 | 33 | 33 |
| J3.4505 | 0.5 | 45 | 3 | 33 | 33 |
| J3.6002 | 0.2 | 60 | 3 | 33 | 33 |
| J3.6003 | 0.3 | 60 | 3 | 33 | 33 |
| J3.6005 | 0.5 | 60 | 3 | 33 | 33 |
| J3.9002 | 0.2 | 90 | 3 | 33 | 33 |
| J3.9003 | 0.3 | 90 | 3 | 33 | 33 |
| J3.2001L | 0.1 | 20 | 3 | 40 | 40 |
| J3.2002L | 0.2 | 20 | 3 | 40 | 40 |
| J3.3001L | 0.1 | 30 | 3 | 40 | 40 |
| J3.3002L | 0.2 | 30 | 3 | 40 | 40 |
| J3.3003L | 0.3 | 30 | 3 | 40 | 40 |
| J3.4502L | 0.2 | 45 | 3 | 40 | 40 |
| J3.6002L | 0.2 | 60 | 3 | 40 | 40 |
| J3.9002L | 0.2 | 90 | 3 | 40 | 40 |
| J42001 | 0.1 | 20 | 4 | 40 | 40 |
| J42002 | 0.2 | 20 | 4 | 40 | 40 |
| J42501 | 0.1 | 25 | 4 | 40 | 40 |
| J42502 | 0.2 | 25 | 4 | 40 | 40 |
| J43001 | 0.1 | 30 | 4 | 40 | 40 |
| J43002 | 0.2 | 30 | 4 | 40 | 40 |
| J43003 | 0.3 | 30 | 4 | 40 | 40 |
| J44502 | 0.2 | 45 | 4 | 40 | 40 |
| J44503 | 0.3 | 45 | 4 | 40 | 40 |
| J43002L | 0.2 | 20 | 4 | 75 | 75 |
| J43002L | 0.2 | 30 | 4 | 75 | 75 |
| J61502 | 0.2 | 15 | 6 | 40 | 40 |
| J62002 | 0.2 | 20 | 6 | 40 | 40 |
| J62502 | 0.2 | 25 | 6 | 40 | 40 |
| J63002 | 0.2 | 30 | 6 | 40 | 40 |
| J64002 | 0.2 | 40 | 6 | 40 | 40 |
| J64003 | 0.3 | 40 | 6 | 40 | 40 |
| J64502 | 0.2 | 45 | 6 | 40 | 40 |
| J64505 | 0.5 | 45 | 6 | 40 | 40 |
| J66002 | 0.2 | 60 | 6 | 40 | 40 |
| J66005 | 0.5 | 60 | 6 | 40 | 40 |
| J66010 | 1 | 60 | 6 | 40 | 40 |
| J66015 | 1.5 | 60 | 6 | 40 | 40 |
| J66020 | 2 | 60 | 6 | 40 | 40 |
| J69002 | 0.2 | 90 | 6 | 40 | 40 |
| J69005 | 0.5 | 90 | 6 | 40 | 40 |
| J612002 | 0.2 | 120 | 6 | 40 | 40 |
| J64502L | 0.2 | 45 | 6 | 100 | 100 |
| J66002L | 0.2 | 60 | 6 | 100 | 100 |
| J84502 | 0.2 | 45 | 8 | 50 | 50 |
| J86002 | 0.2 | 60 | 8 | 50 | 50 |
| J89002 | 0.2 | 90 | 8 | 50 | 50 |
| J104502 | 0.2 | 45 | 10 | 60 | 60 |
| J106002 | 0.2 | 60 | 10 | 60 | 60 |
| J109002 | 0.2 | 90 | 10 | 60 | 60 |
| J1012002 | 0.2 | 120 | 10 | 60 | 60 |
| J126002 | 0.2 | 60 | 12 | 60 | 60 |
| J129002 | 0.2 | 90 | 12 | 60 | 60 |
| J1212002 | 0.2 | 120 | 12 | 60 | 60 |
| JS3.2002 | 0.2 | 20 | 3 | 33 | 33 |
| JS3.3002 | 0.2 | 30 | 3 | 33 | 33 |
| JS3.3003 | 0.3 | 30 | 3 | 33 | 33 |
| JS3.3004 | 0.4 | 30 | 3 | 33 | 33 |
| JS3.4002 | 0.2 | 40 | 3 | 33 | 33 |
| JS3.4003 | 0.3 | 40 | 3 | 33 | 33 |
| JS3.4502 | 0.2 | 45 | 3 | 33 | 33 |
| JS3.4503 | 0.3 | 45 | 3 | 33 | 33 |
| JS3.5003 | 0.3 | 50 | 3 | 33 | 33 |
| JS3.5004 | 0.4 | 50 | 3 | 33 | 33 |
