Description

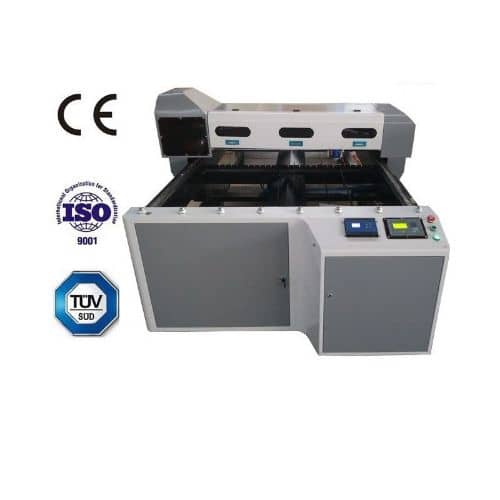

Mx Co2 Laser (For Metal and Non Metal)
Features:
1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board 2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment, extend the time of using 3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area. 4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control, it can meet the precision parts processing,stable dynamic performance,also can work for long hours. 5. The cutting section with good quality: Mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting. 6.Adopt sealed co2 laser tube , main consumable items are electric energy, water cooling, auxiliary gas and laser light 7. Sample structure, easy operation, stable laser device and low maintenance cost.|
Model |
MX-1309 | MX-1325 Metal and Non-Metal Laser Cutting Machine |
| Working area |
1300*900mm | 1300*2500mm |
| Laser power | 150W glass laser tube (260W is option) |
| Laser type | CO2 laser tube,water-cooling |
| Engraving speed | 0-40000mm/min |
| Cutting speed | 0-20000mm/min |
| Power supply | 220V/50HZ |
| Position accuracy | 0.01mm |
| Repetition accuracy | 0.02mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Guide rail | Hiwin from Taiwan |
| Transmission method | Belt transmission(Ball screw transmission is optional) |
| Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
| Driving system | Stepper motor and driver (Servo Motor is option) |
| Net Weight | 450kg |
| Optional part | Partial up-down work table, USB Port, Autofocus |
